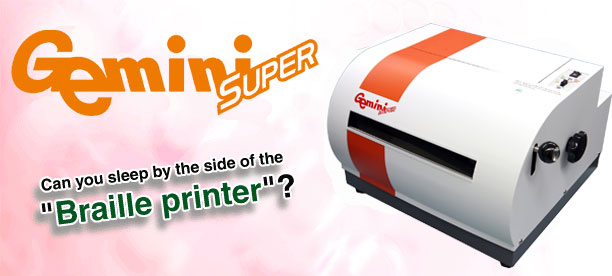

"A Braille Printer" that annoys you with its loud noise. You've given it up, haven't you? So, why don't you try to sleep by the side of " The Nippon Telesoft's Braille Printer"? You'll be amazed by its very quiet operation. Some blind person tries to touch as wondering if it's operating really. A slight sound can barely be heard, but it's comfortable to the ear.

Some says they can take a nap! Of course, you need NO soundproof box, NO soundproof room. Our printers produce very clear Braille to read and can print at higt speed. Also, you'll be satisfied their outstanding function - simultaneous parallel print " Braille & Ink." (If you don't read Braille, you can understand what is written.) We're sure our Braille Printers will extend your world of " Possibility and Chance".

*English


*French


*German


*Croat


*Chinese

*English
how to change inkcartridge


*Spanish
Cambiar los cartuchos de tinta

• BrailleFigure Download
• USBDriver Download
• Network program download

Gemini Super Pamphlet
GeminiSuper Manual
Appendix:Maintenance Switch settings
Gemini Printer Trouble Shooting Procedures

To read this "User's Manual", the" Acrobat reader" need to be installed in your computer.If you don't have this application, please download (Free of charge) and install it following the procedure as below.

Adobereader Download

*Rich Function For Printing Braille
Besides printing Braille,it is also possible to print 8-dot Braille and Braille Graphics. By just adjusting the line spacing, you can use it effectively in a variety of ways.

*Print at High Speed With Minimum Noise
The noise level has been greatly reduced by using Nippon Telesoft's high-tech printing method that actually pushes the Braille printing pins into the paper instead of striking the paper.
This method also allows an entire line of Braille to be printed at the same time.

	Braille	Ink
Types of characters	Alphabets / Numerals / Symbols Major language used in EU and Asia
Line per page	24 lines maximum (10x11 inches paper –one side printout) 20 lines when double sided printout
Character system	6 or 8 dot Braille/Graphics Dot spacing 0.09 inches Cell spacing 0.15 inches	24 * 24 dots
Characters per line	32	92
Printing speed	36cps	90cps
Printing principal	Line printing (pushing up pins at once by biased cam shaft)	Dot matrix impact
Paper feed system	Tractor feed method
Paper	8~11 inches * 10~14 inches Continuous tractor feed paper
Interface	USB / RS-232C / Parallel
Power supply / consumption	100-120 / 200-240V 50 / 60Hz / 130VA
Size / Weight	18.5(W) * 17(D) * 12(H) inches / 24.5kg
Sound level	Braille only 52 dB(A) / Braille and Ink 55 dB(A) and less than 50 dB(A) in one meter distance
