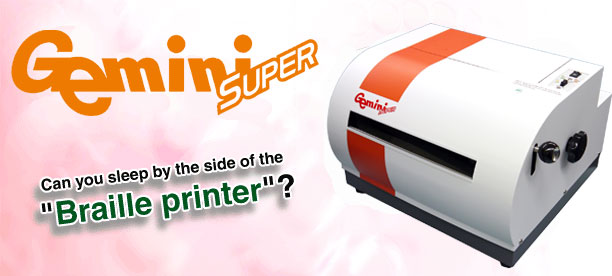

“A Braille Printer” that annoys you with its loud noise. You’ve given it up, haven’t you? So, why don’t you try to sleep by the side of ” The Nippon Telesoft’s Braille Printer”? You’ll be amazed by its very quiet operation. Some blind person tries to touch as wondering if it’s operating really. A slight sound can barely be heard, but it’s comfortable to the ear.
Some says they can take a nap! Of course, you need NO soundproof box, NO soundproof room. Our printers produce very clear Braille to read and can print at high speed. Also, you’ll be satisfied their outstanding function – simultaneous parallel print ” Braille & Ink.” (If you don’t read Braille, you can understand what is written.) We’re sure our Braille Printers will extend your world of ” Possibility and Chance”.
Print Braille and Ink simultaneously on the same page!
*Rich Function For Printing Braille
Besides printing Braille,it is also possible to print 8-dot Braille and Braille Graphics. By just adjusting the line spacing, you can use it effectively in a variety of ways.
*Print at High Speed With Minimum Noise
The noise level has been greatly reduced by using Nippon Telesoft’s high-tech printing method that actually pushes the Braille printing pins into the paper instead of striking the paper.
This method also allows an entire line of Braille to be printed at the same time.

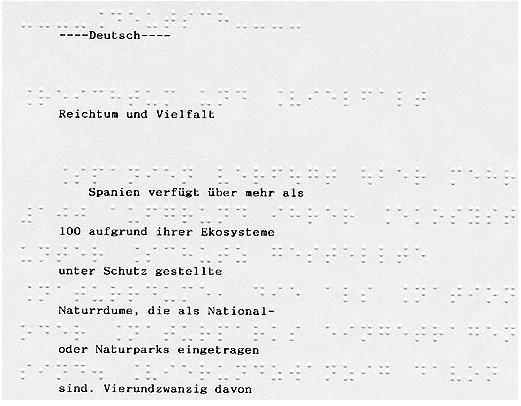

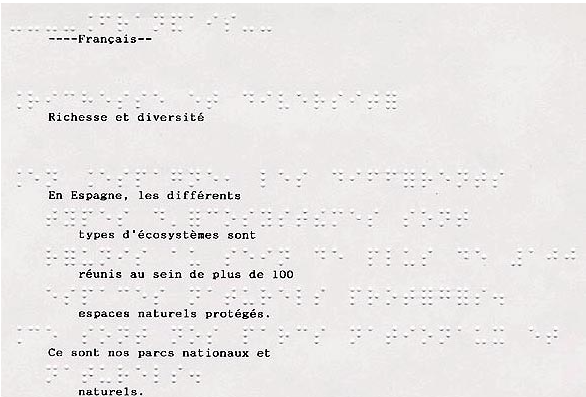

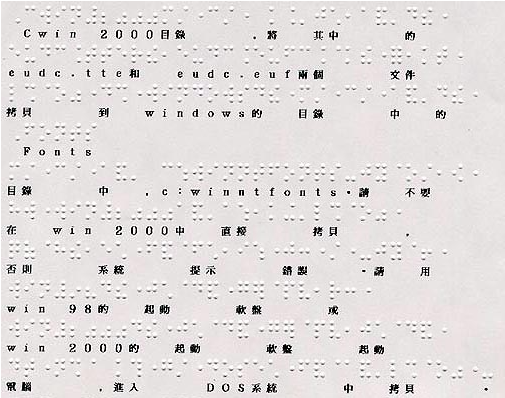

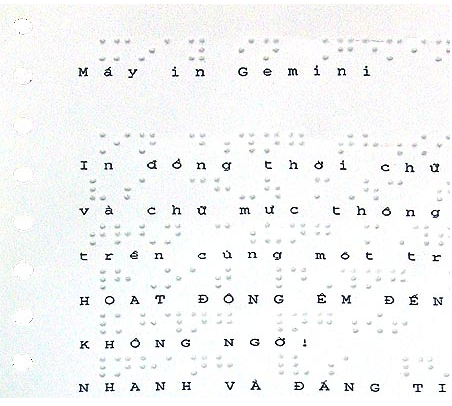

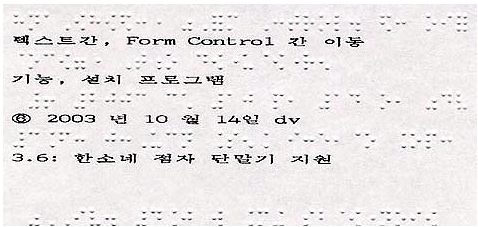

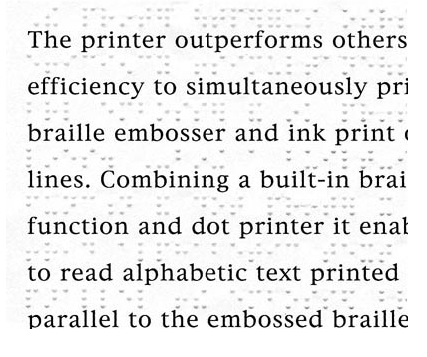

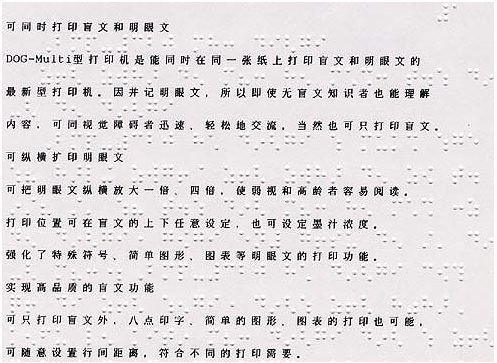

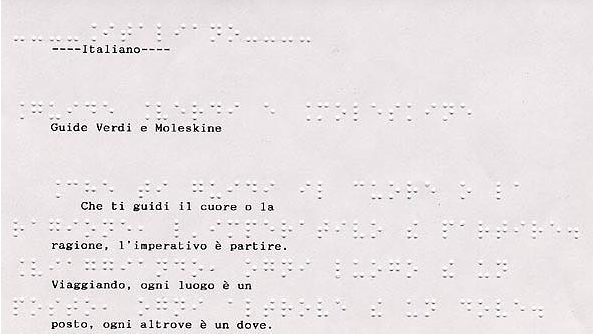

Sample
Movie
How to change inkcartridge
Download
- BrailleFigure Download
- USBDriver Download
- Network program download
- Braille Hanoi(braille editor for Vietnamese [ver 2.0.4.4])
- Braille Hanoi(braille editor for Vietnamese [ver 2.0.4.4]) (Zip file)
Manual Download
Gemini Super Pamphlet
GeminiSuper Manual
Appendix:Maintenance Switch settings
Gemini Printer Trouble Shooting Procedures
Specifications
| Braille | Ink | |
| Types of characters | Alphabets / Numerals / Symbols Major language used in EU and Asia | |
| Line per page | 24 lines maximum (10×11 inches paper –one side printout) 20 lines when double sided printout | |
| Character system | 6 or 8 dot Braille/Graphics Dot spacing 0.09 inches Cell spacing 0.15 inches | 24 * 24 dots |
| Characters per line | 32 | 92 |
| Printing speed | 36cps | 90cps |
| Printing principal | Line printing (pushing up pins at once by biased cam shaft) | Dot matrix impact |
| Paper feed system | Tractor feed method | |
| Paper | 8~11 inches * 10~14 inches Continuous tractor feed paper | |
| Interface | USB / RS-232C / Parallel | |
| Power supply / consumption | 100-120 / 200-240V 50 / 60Hz / 130VA | |
| Size / Weight | 18.5(W) * 17(D) * 12(H) inches / 24.5kg | |
| Sound level | Braille only 52 dB(A) / Braille and Ink 55 dB(A) and less than 50 dB(A) in one meter distance | |
